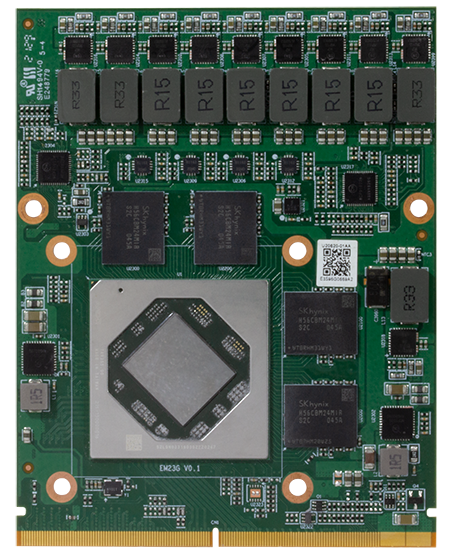

RX6600 MXM module

Main Features

• AMD Radeon RX 6600
• Supports DirectX 12, Vulkan, OpenGL 4.6, Open CL 2.2
• MXM 3.1 Type B
• Support for 4 outputs
• 128-bit width, 8GB, GDDR6 Memory

• Graphics Engine : AMD Radeon RX 6600
• Process technology : 7 nm
• Engine Clock (max) :
  [Base] up to 1649 MHz
  [Boost] up to 2073 MHz
  [Game] 1891 MHz *
• Graphics Memory : 128-bit, 8 GB, GDDR6
• Memory Clock (max) : 14 Gbps
• MXM tpye : MXM 3.1 , Type B
• Bus Interface : PCI ExpressR 3.0 (x8)
• Shader Processing Units : 1792 Stream processors
• Floating Point Performance : 7.4 TFLOPs
• DirectX Capability : DirectX 12
• OpenGL : OpenGL 4.6
• OpenCL : OpenCL 2.2
• VULKAN : VULKAN Support
• Unified Video Decoder (UVD) : Radeon Media Engine
• BIOS Mode : UEFI
• Power Consumption : 86W
• Operating Temperature : 0°C ~ 45°C
• Dimension : 82 x 105 mm

*Note : Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary
**Output vBIOS depends on customized MB design.
