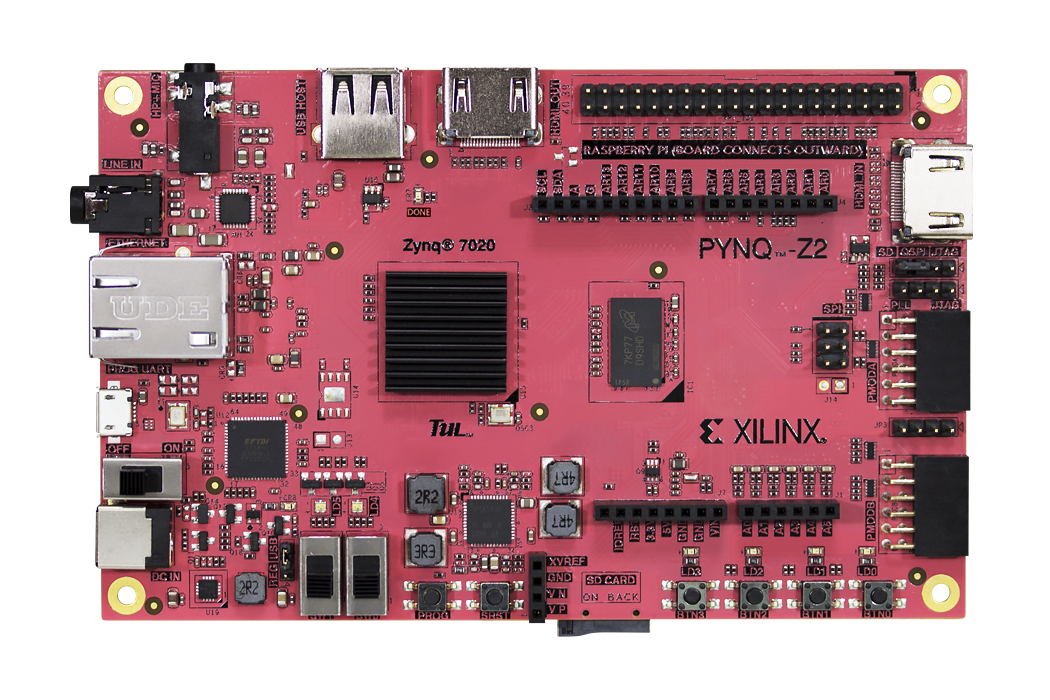

PYNQ™-Z2

ZYNQ XC7Z020-1CLG400C

• 650MHz dual-core Cortex-A9 processor
• DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
• Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
• Programmable from JTAG, Quad-SPI flash, and MicroSD card
• Programmable logic equivalent to Artix-7 FPGA
• 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops
• 630 KB of fast block RAM
• 4 clock management tiles, each with a phase locked loop (PLL) and mixed-mode clock manager (MMCM)
• 220 DSP slices
• On-chip analog-to-digital converter (XADC)

Memory

• 512MB DDR3 with 16-bit bus @ 1050Mbps
• 16MB Quad-SPI Flash with factory programmed 48-bit globally unique EUI-48/64 compatible identifier
• MicroSD slot

Power

• Powered from USB or 7V-15V external power source

USB and Ethernet

• Gigabit Ethernet PHY
• Micro USB-JTAG Programming circuitry
• Micro USB-UART bridge
• USB 2.0 OTG PHY (supports host only)

Audio and Video

• HDMI sink port (input)
• HDMI source port (output)
• I2S interface with 24bit DAC with 3.5mm TRRS jack
• Line-in with 3.5mm jack

Switches, Push-buttons and LEDs

• 4 push-buttons
• 2 slide switches
• 4 LEDs
• 2 RGB LEDs

Expansion Connectors

• Two standard Pmod ports
• 16 Total FPGA I/O (8 shared pins with Raspberry Pi connector)
• Arduino Shield connector
• 24 Total FPGA I/O
• 6 Single-ended 0-3.3V Analog inputs to XADC
• Raspberry Pi connector
• 28 Total FPGA I/O (8 shared pins with Pmod A port)
